map_of_fle#

The map_of_fle script computes global or regional maps of Finite-Size (FSLE) or Finite-Time (FTLE) Lyapunov Exponents from a time series of velocity fields stored in NetCDF files.

Usage#

usage: map_of_fle [--resolution STEP] [--x_min X_MIN] [--x_max X_MAX]
                  [--y_min Y_MIN] [--y_max Y_MAX] [--mode {fsle,ftle}]
                  [--time_direction {backward,forward}]
                  [--stencil {triplet,quintuplet}]
                  [--initial_separation DELTA] [--advection_time DURATION]
                  [--final_separation DELTA]
                  [--integration_time_step DURATION] [--diagnostic]
                  [--threads THREADS] [--unit {metric,angular}]
                  [--mask PATH VARNAME] [--verbose] [--version] [--help]
                  configuration output start_time

Compute Map of FLE

positional arguments:
  configuration         configuration file
  output                map of FLE in NetCDF format
  start_time            start of the integration

options:
  --verbose             Verbose mode
  --version             print the version number and exit
  --help, -h            show this help message and exit

grid arguments:
  Set the grid properties to create

  --resolution STEP     output grid resolution in degrees
  --x_min X_MIN         x min in degrees
  --x_max X_MAX         x max in degrees
  --y_min Y_MIN         y min in degrees
  --y_max Y_MAX         y max in degrees

integration arguments:
  Define integration

  --mode {fsle,ftle}    define the integration mode: fsle to compute Finite
                        Size Lyapunov Exponent, ftle to compute Finite Time
                        Lyapunov Exponent.
  --time_direction {backward,forward}
                        time integration direction
  --stencil {triplet,quintuplet}
                        type of stencil used to compute the finite difference.
  --initial_separation DELTA
                        initial separation in degrees of neighbouring
                        particules
  --advection_time DURATION
                        time of advection in number of days elapsed since the
                        beginning of the simulation. This option set the
                        maximum time of advection in FSLE mode
  --final_separation DELTA
                        maximum final separation in degrees
  --integration_time_step DURATION
                        particles time integration step in hours
  --diagnostic          write additional variables containing diagnostics,
                        depending on calculation mode. These variables are the
                        effective final separation distance and advection
                        time, in FSLE mode, or the effective final separation
                        distance, in FTLE mode.
  --threads THREADS     number of threads to use for the computation. If 0 all
                        CPUs are used. If 1 is given, no parallel computing
                        code is used at all.

reader arguments:
  Set options of the NetCDF reader.

  --unit {metric,angular}
                        system of units for velocity
  --mask PATH VARNAME   netCDF grid for fixing undefined cells

Summary#

Input: a list of NetCDF files providing eastward (U) and northward (V) velocities on a lon/lat grid over time.
Output: a NetCDF file with variables lambda1, lambda2 (FLE/FTLE) and theta1, theta2 (eigenvector orientations), plus optional diagnostics.
Modes: fsle (default) or ftle via --mode.

Quick start#

Example: FSLE map over a subdomain, forward in time, 0.05° resolution, 89 days of advection and 0.2° final separation:

map_of_fle list.ini fsle.nc "2010-01-01" \
  --mode fsle --time_direction forward --advection_time 89 \
  --resolution 0.05 --x_min 40 --x_max 60 --y_min -60 --y_max -40 \
  --final_separation 0.2 --verbose

The output NetCDF will contain variables described in “Output” below.

Inputs#

Data description#

The files required to run this example are located in the data.zip archive. These files describe a time series of eastward and northward velocities on a global grid. You can download up-to-date files from the AVISO website.

Each file describes a single time step. The NetCDF header typically contains variables similar to:

dimensions:
  y = 915 ;
  x = 1080 ;
variables:
  double y(y) ;
    y:long_name = "Latitudes" ;
    y:units = "degrees_north" ;
  double x(x) ;
    x:long_name = "Longitudes" ;
    x:units = "degrees_east" ;
  float u(y, x) ;
    u:_FillValue = 999.f ;
    u:long_name = "eastward velocity" ;
    u:units = "cm/s" ;
  float v(y, x) ;
    v:_FillValue = 999.f ;
    v:long_name = "northward velocity" ;
    v:units = "cm/s" ;

Note: Units like cm/s are metric. Keep --unit metric (default) for such inputs. Use --unit angular only if your U/V are provided in angular units (e.g., degrees per time).

Configuration file#

You must provide a simple .ini-like configuration file listing the U and V files and variable names. Example:

U = /path/to/dt_upd_global_merged_madt_uv_20091230_20091230_20110329.nc
U = /path/to/dt_upd_global_merged_madt_uv_20100106_20100106_20110329.nc
... (one line per time slice)
V = /path/to/dt_upd_global_merged_madt_uv_20091230_20091230_20110329.nc
V = /path/to/dt_upd_global_merged_madt_uv_20100106_20100106_20110329.nc
... (one line per time slice)
U_NAME = Grid_0001
V_NAME = Grid_0002
FILL_VALUE = 0

U: paths to NetCDF files containing eastward velocities (one per line).
V: paths to NetCDF files containing northward velocities (one per line).
U_NAME/V_NAME: variable names inside each NetCDF file for U and V.
FILL_VALUE: value to use when encountering missing data. Use 0 to avoid propagation of missing values, or nan if you want missing values to propagate through the computation.

Paths can be absolute or use environment variables, e.g.:

U = ${DATA}/dt_upd_global_merged_madt_uv_20100407_20100407_20110329.nc

Options and modes#

Common options#

--resolution: output grid step in degrees (default: 1.0). Also used as default --initial_separation if not provided.
--x_min/x_max/y_min/y_max: lon/lat bounds of the output grid.
--integration_time_step: particle integration time step in hours (default: 6).
--unit: velocity unit system (metric or angular), default metric. Choose according to U/V variable units in your files.
--mask PATH VARNAME: a NetCDF grid; cells that are masked in this grid are skipped to speed up computation.
--threads N: number of CPU threads. 0 uses all CPUs; 1 disables multithreading.
--verbose: print debug information.

FSLE vs FTLE#

--mode fsle (default): FSLE computation requires a --final_separation (in degrees). --advection_time sets the maximum advection time.
--mode ftle: FTLE computation ignores --final_separation and uses the exact --advection_time.
--time_direction: forward or backward integration.

Constraints#

--final_separation is not allowed in FTLE mode and will raise an error.
--initial_separation defaults to --resolution when unspecified.

Distributed execution (Dask)#

You can split the computation by latitude chunks and distribute it with Dask:

--local-cluster: start a local Dask cluster automatically (for testing or single-node workflows).
--scheduler_file PATH: connect to an existing Dask cluster using a scheduler file.

Examples:

# Local cluster
map_of_fle list.ini fsle.nc "2010-01-01" --mode fsle \
  --time_direction forward --advection_time 89 --final_separation 0.2 \
  --resolution 0.05 --x_min 40 --x_max 60 --y_min -60 --y_max -40 \
  --local-cluster --verbose

# External cluster
map_of_fle list.ini fsle.nc "2010-01-01" --mode fsle \
  --time_direction forward --advection_time 89 --final_separation 0.2 \
  --resolution 0.05 --x_min 40 --x_max 60 --y_min -60 --y_max -40 \
  --scheduler_file /path/to/scheduler.json

Output#

The output NetCDF contains:

Dimensions: lon, lat (note the variable dimensionality is (lon, lat)).
Coordinates: - lon [degrees_east] - lat [degrees_north]
Main variables:
- theta1 [degree]: orientation of eigenvectors associated with maximum eigenvalues of the Cauchy–Green strain tensor.
- theta2 [degree]: orientation of eigenvectors associated with minimum eigenvalues of the Cauchy–Green strain tensor.
- lambda1 [1/day]: FLE/FTLE associated with maximum eigenvalues.
- lambda2 [1/day]: FLE/FTLE associated with minimum eigenvalues.
Optional diagnostics (--diagnostic):
- separation_distance [degree]: effective final separation distance.
- advection_time [day]: actual advection time (FSLE mode only), counted since the provided start time.

Examples#

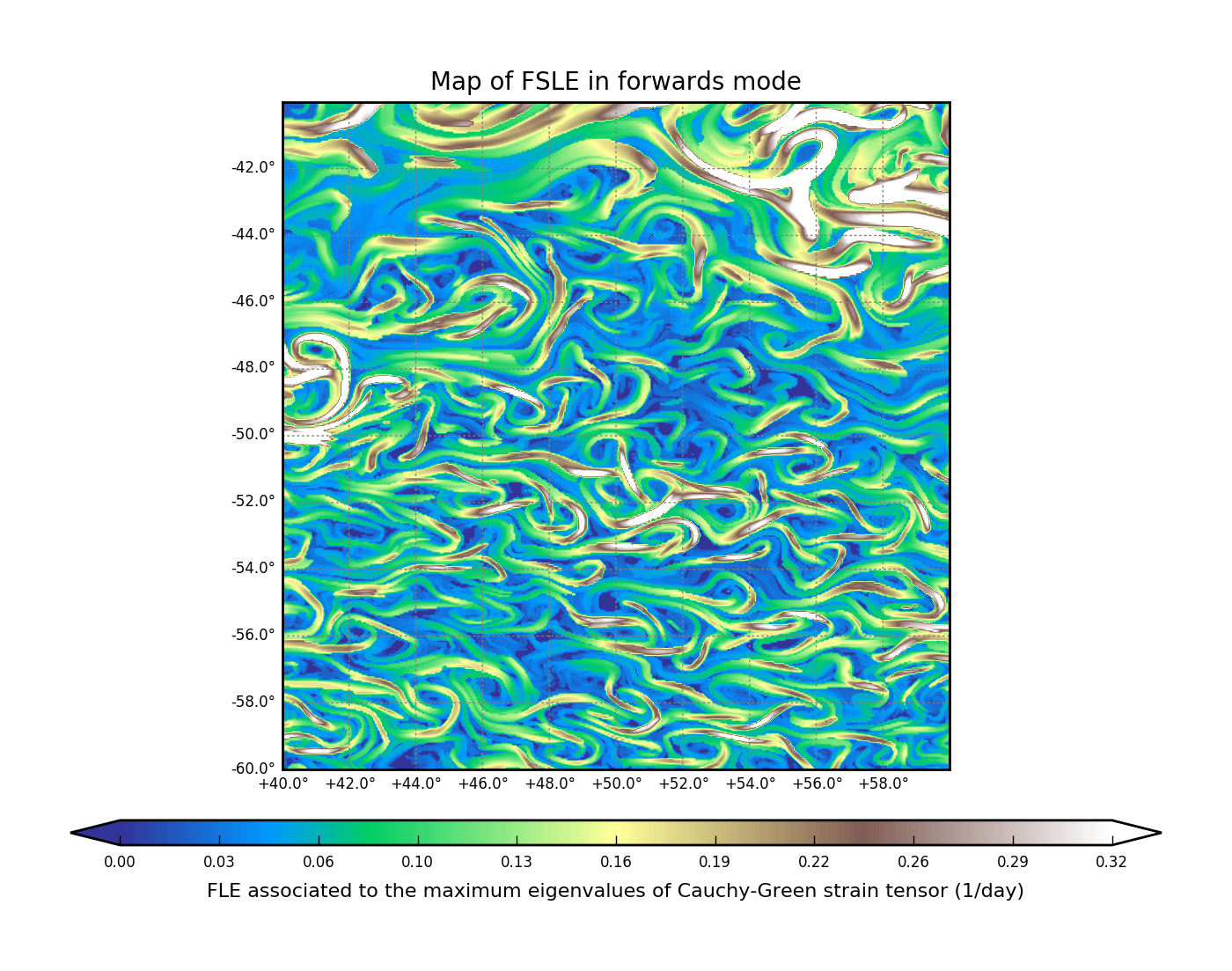

FSLE forward#

map_of_fle.py list.ini fsle.nc "2010-01-01" --advection_time 89 \
  --resolution 0.05 --x_min 40 --x_max 60 --y_min -60 --y_max -40 \
  --final_separation 0.2 --verbose --time_direction forward

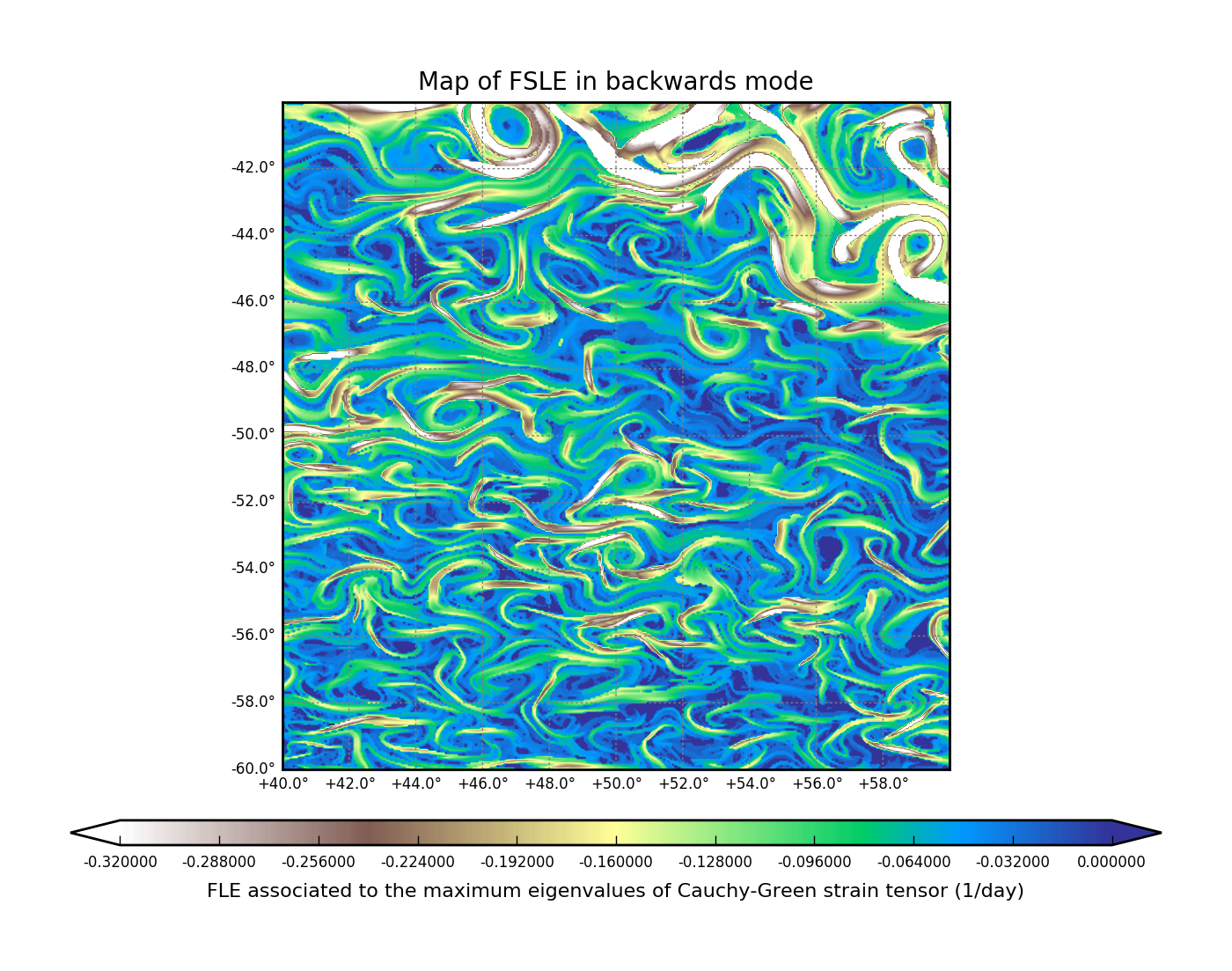

FSLE backward#

map_of_fle.py list.ini fsle_backwards.nc "2010-03-31" --advection_time 89 \
  --resolution 0.05 --x_min 40 --x_max 60 --y_min -60 --y_max -40 \
  --final_separation 0.2 --verbose --time_direction backward

FTLE example#

map_of_fle list.ini ftle.nc "2010-01-01" --mode ftle --advection_time 60 \
  --resolution 0.05 --x_min 40 --x_max 60 --y_min -60 --y_max -40 \
  --verbose --time_direction forward

Masking land/invalid cells#

Use a land/sea mask (or any boolean mask) to skip cells and speed up run time:

map_of_fle list.ini fsle.nc "2010-01-01" --advection_time 89 \
  --final_separation 0.2 --mask mask.nc land

Help#

Type map_of_fle --help or map_of_fle.py --help to see all options.

Troubleshooting#

PYTHONPATH#

If you see this error message:

Traceback (most recent call last):
  File "map_of_fle.py", line 17, in <module>     import lagrangian
ImportError: No module named lagrangian

Set the PYTHONPATH environment variable to include the directory that contains the compiled lagrangian module (lagrangian.so).

UDUNITS2_XML_PATH#
