Map of FSLE (Finite-Size Lyapunov Exponent)

This example reproduces, in a compact and executable form, the workflow documented in the console script guide for map_of_fle and the unit test tests/test_console_scripts.py. It shows how to:

• Build the configuration of a velocity time series from a list of NetCDF files (using the same template as in tests/map.ini)

• Run the console entry-point programmatically to compute a FSLE map

• Open the resulting NetCDF and visualize the main output (lambda1)

Computation domain

We compute a forward FSLE map on a 0.05° grid over [40, 59.95]°E × [-60, -40.05]°N, with an advection time of 89 days and a final separation of 0.2°. Those settings mirror the ones used in the unit tests.

from __future__ import annotations

import os
import pathlib
import sys
import tempfile

import matplotlib.pyplot as plt
import netCDF4

import lagrangian

The console script we want to run programmatically

from lagrangian.console_scripts.map_of_fle import main as map_of_fle_main

Define the ROOT folder of this example

EXAMPLES_DIRECTORY_PATH = pathlib.Path().absolute()

Define the base directory of this example

TESTS_DIRECTORY_PATH = EXAMPLES_DIRECTORY_PATH.parent / 'tests'

This example relies on built-in test data provided by the lagrangian library. To facilitate this, we use the SampleDataHandler class, which simplifies downloading and accessing the required test data. For this example, we will override the default behavior to store the downloaded data in the test data folder. This folder is writable and allows the data to be reused across multiple gallery examples.

class SampleDataHandler(lagrangian.SampleDataHandler):
    ROOT = TESTS_DIRECTORY_PATH

Download the built-in test data if not already present

SampleDataHandler()

<__main__.SampleDataHandler object at 0x7f69313249e0>

Prepare the configuration file (reusing tests/map.ini template) The template relies on ${ROOT}, which we set to the built-in test data.

os.environ['ROOT'] = str(SampleDataHandler.folder())
map_ini_path = TESTS_DIRECTORY_PATH / 'map.ini'

Define the output NetCDF file path

out_nc = pathlib.Path(tempfile.gettempdir()) / 'fsle_gallery.nc'

Defined the command line arguments to run the console script

sys.argv = [
    'map_of_fle',
    str(map_ini_path),
    str(out_nc),
    '2010-01-01',
    '--advection_time=89',
    '--resolution=0.05',
    '--x_min=40',
    '--x_max=59.95',
    '--y_min=-60',
    '--y_max=-40.05',
    '--final_separation=0.2',
    '--time_direction=forward',
]

Run the console script programmatically

map_of_fle_main()

Open the NetCDF and visualize lambda1 (1/day)

with netCDF4.Dataset(out_nc) as ds:
    lon = ds['lon'][:]
    lat = ds['lat'][:]
    lam1 = ds['lambda1'][:]  # shape (lon, lat)

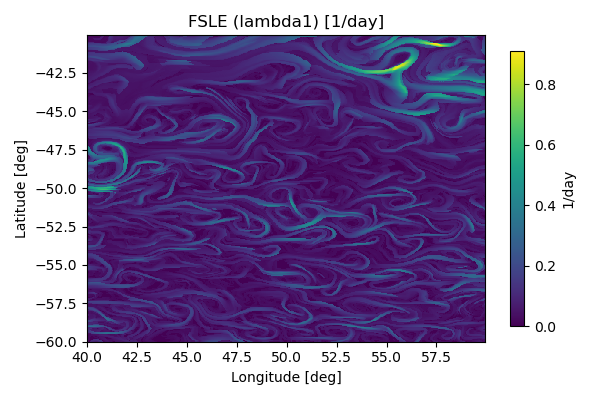

Plot as an image with geographic extent

fig, ax = plt.subplots(figsize=(6, 4))
img = ax.imshow(
    lam1.T,  # transpose to (lat, lon)
    origin='lower',
    extent=[lon.min(), lon.max(), lat.min(),
            lat.max()],
    cmap='viridis',
    interpolation='nearest',
    aspect='auto',
)
ax.set_title('FSLE (lambda1) [1/day]')
ax.set_xlabel('Longitude [deg]')
ax.set_ylabel('Latitude [deg]')
cbar = fig.colorbar(img, ax=ax, orientation='vertical', shrink=0.9)
cbar.set_label('1/day')
plt.tight_layout()
